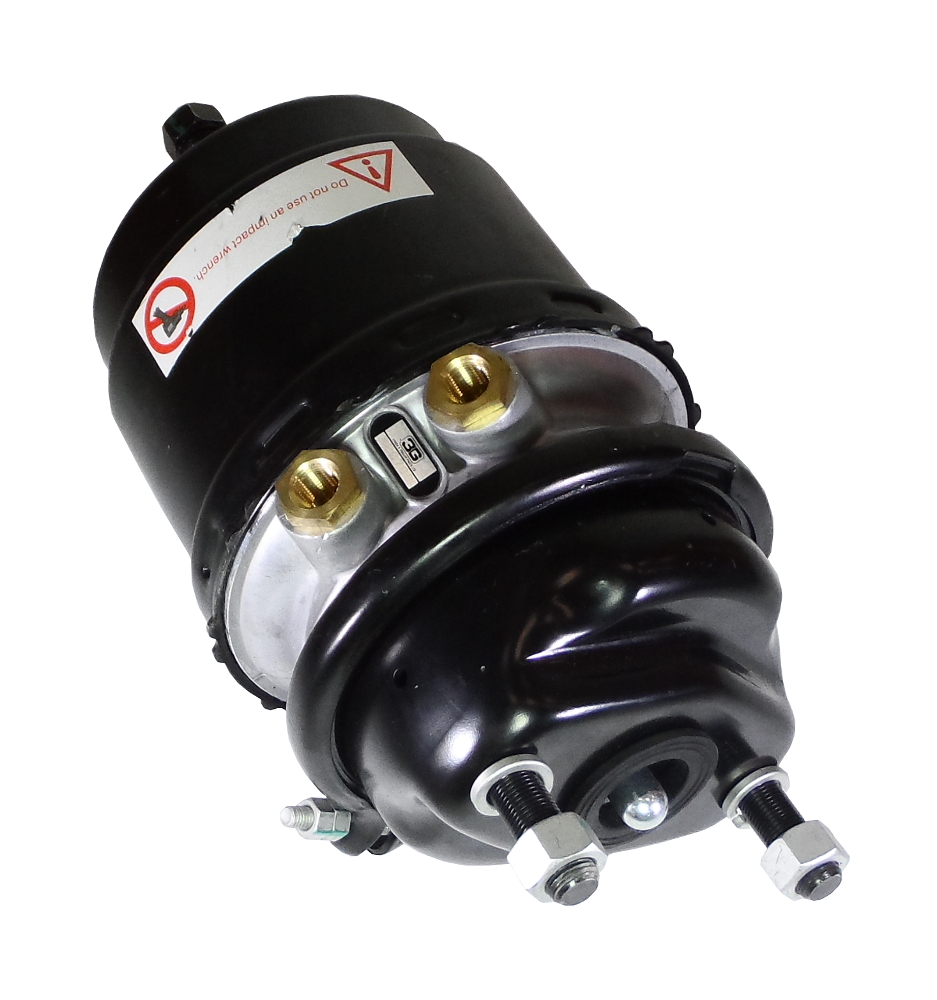

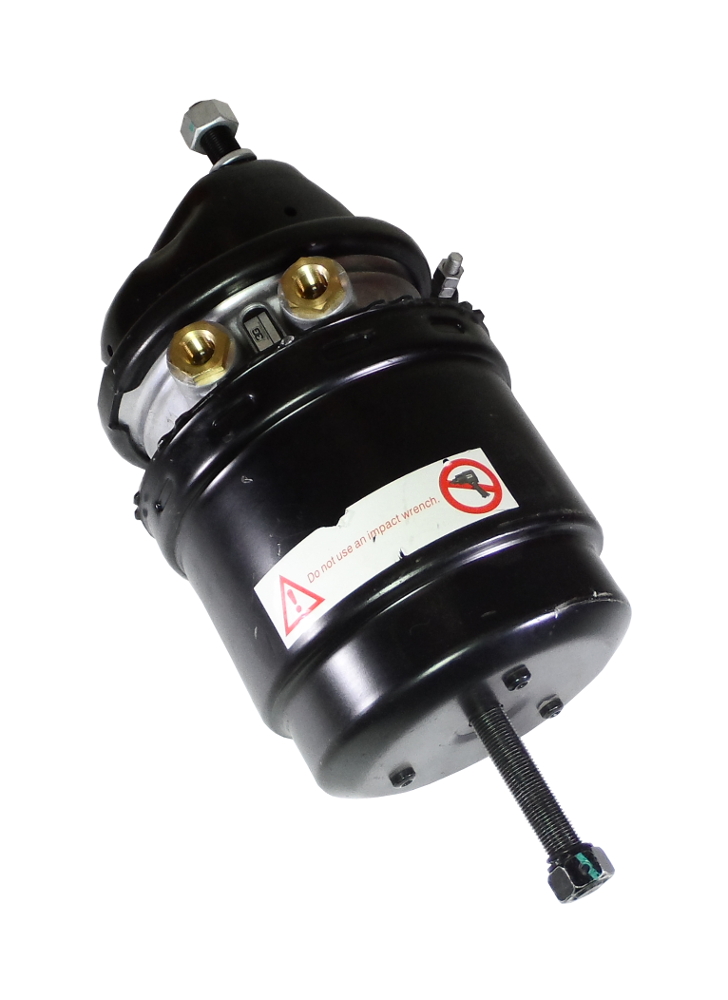

JOUSIJARRUSYLINTERI 20/24 LEVYJARRU MAN

Kuvaus

Mounting bolt centres [mm] 120.7
Mounting bolt thread size M16x1,5
Spring portion output force @ 35mm stroke [kN] 9.000 kN
Spring portion output force @ 25mm stroke [x100N] 98.0
Stroke (stroke of service/stroke of spring portion) [mm] 64/64
Spring Portion Diameter [mm] 176 mm
Mounting stud length [mm] 43 mm
Weight [Kg] 8.50 kg
Has opposite handed version K007669
Service Portion Port(s) size Voss NG12 M22x1,5
Spring Portion Port(s) size Voss NG12 M22x1,5
Service Portion Type (Diaphragm size) 20
Spring Portion Type 24HFL1
Spring Portion Version Piston
Push rod length (to yoke pin centre if fitted) [mm] 15 mm
